TYC-V-18-R-2-S-PCD
Clamping Force:350 tons
Highlights:

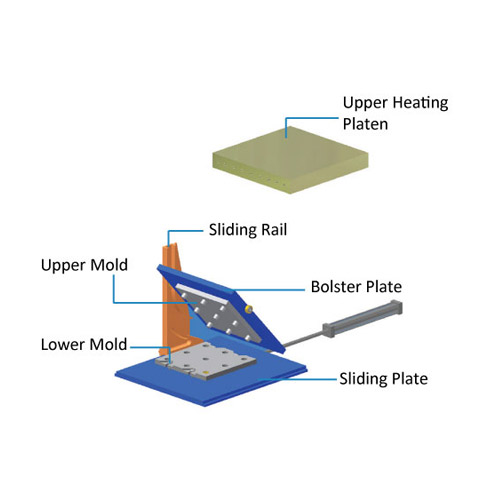

  • Mold plate turnover at 60°, custom design available.
Application Examples：
  • O-rings
  • Gaskets
  • Rubber sheets
  • Keyboards
  • Tennis



Technical Specifications：
Machine Type   TYC-V-10- TYC-V-12- TYC-V-14- TYC-V-16- TYC-V-18- TYC-V-22-
Clamping Force ton 100 150 200 250 350 500
Heating Platen Size (L.R. x F.B.) mm 405x430 450x480 505x510 570x610 700x700 700x700 /
800x800
Daylight (max.) mm 300
Stroke (max.) mm 250
Heater Capacity Per Station kW 8.76 10.56 17.4 19.2 22.6 22.6 /
39.2
Connection Station Per Set   1,2,3,4 1,2
Turnover Degree ˚ 45˚
Piston Diameter mm 250 300 355 400 457.2 560
Vacuum Stroke mm 160 160 160 200 200 200
